Hitachi(日立)Deskstar 40GB 硬碟機(Hard Disk Drive)- 介紹(一)

Hitachi(日立)Deskstar 40GB 硬碟機(Hard Disk Drive)- 介紹(一):

這台是Hitachi(日立)硬碟機(HDD / Hard Disk Drive),型號 Deskstar(IC35L060AVV207-0),容量有 40GB,生產日期 04-JUN-03(估計在 2003年),生產廠商是 Hitachi Global Storge Technologies Inc.,中國製造(Made in China),硬碟機尺寸 145.6mm × 101mm × 24.5mm,硬碟機重量是 552g(規格 - 598.7g / 1.32lbs)。

Hitachi(日立)Deskstar 40GB 硬碟機(Hard Disk Drive)
Hitachi(日立)Deskstar 40GB 硬碟機(Hard Disk Drive)的正面

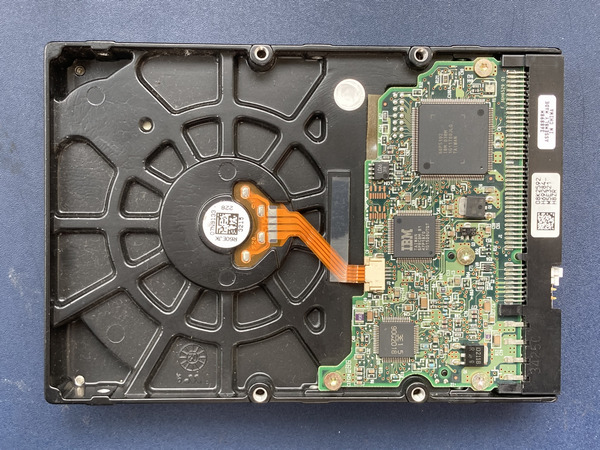

Hitachi(日立)Deskstar 40GB 硬碟機(Hard Disk Drive)的背面

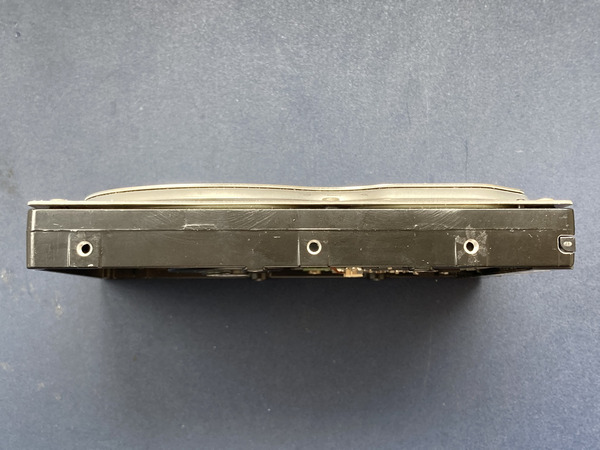

Hitachi(日立)Deskstar 40GB 硬碟機(Hard Disk Drive)的右側面
Hitachi(日立)Deskstar 40GB 硬碟機(Hard Disk Drive)的左側面
Hitachi(日立)Deskstar 40GB 硬碟機(Hard Disk Drive)的頂部
Hitachi(日立)Deskstar 40GB 硬碟機(Hard Disk Drive)的底部
Hitachi(日立)Deskstar 40GB 硬碟機(Hard Disk Drive)的標籤
品牌型號:Hitachi(日立)硬碟機(Hard Disk Drive / HDD)
型號:Deskstar 40GB(IC35L060AVV207-0)
Capacity:40.00GB(16383 / 16 / 63)
LBA:78.156.288 Sector
Form Factor:3.5" × 1/3H
Disks:1
Data Heads:2(Logical read/write heads - 16)
Head Type:Thin-film Heads
Actuator Type:Rotary Voice Coil
Track Density:?
Bit Density:?BPI
Cylinders:(Logical cylinders s - ?)
Rotation RPM:7200 rpm
Rotation Ready Time:?s
Average Rotational Latency:4.17ms
Sectors/Track:?
Seek Times:8.5 ms (Average) / 15.4ms (Max)
Track To Track Seek Time:1.1ms
Full Stroke Seek Time:?ms
Start / Stop Cycles:40000
Controller:?
Data Transfer Rate:100MBps
Internal Data Rate:87.4MBps
Buffer Size:2MB
Precompensation Landing Zone:?
Bytes/Sector:?
Record Method:?
MTBF:?
Storage Hard Drive / Non-Recoverable Errors:1 per 10^14 bits transferred
Interface:IDE / ATA-100
Connector:40 pin IDC
Shock Tolerance:0.67 g @ RMS (random) (operating) / 1.04 g @ RMS (random) (non-operating)
Operating Temperature:41 °F ~ 131 °F
Humidity Range Operating:8 ~ 90%
Max Altitude Operating:?
Sound Emission:26dBA
Compliant Standards:CSA,FCC,D33082,MIC 02-2570
Voltage Required:+5V 0.5A / +12V 0.7A
Features:Fluid Dynamic Bearing (FDB) motor, No-ID, TrueTrack servo technology, load/unload technology, temperature sensor
顏色:銀黑色
尺寸:145.6mm × 101.3mm × 25.3mm(規格 - 5.7inch × 4inch × 1inch)
重量:552g(規格 - 598.7g / 1.32lbs)
產地:中國製造(Made in China)
上市日期:估計 2003年
參考售價:?
